1 / 242' working height · 507 lb platform capacity

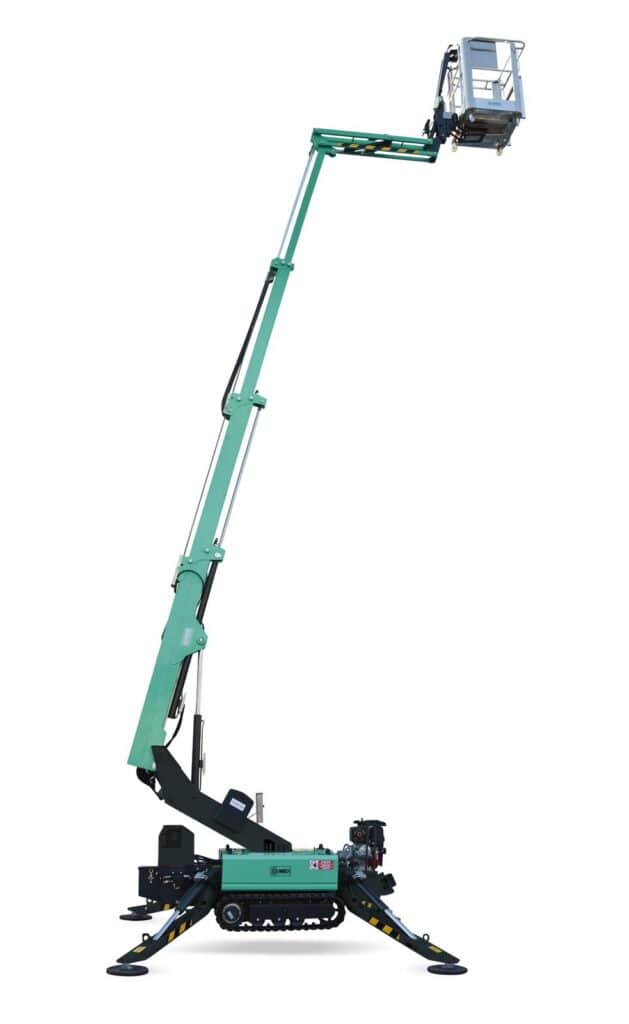

The IMER IM R 42 / 13 T is the compact entry point to the IMER tracked spider lift line: a 42 foot working height and 507 lb platform capacity on a 3,430 lb machine that fits through a 36-inch doorway with the basket removed. Its telescopic boom reaches 22' 4" of side outreach, auto-leveling outriggers set up fast on uneven ground, and a Honda gas engine paired with a 120 V electric motor lets one machine cover outdoor sites and finished interiors.
- 22' 4" side outreach at 198 lb and 18' 1" at the full 507 lb capacity
- 360° non-continuous turret rotation to work both sides of a setup
- 31" transport width with the basket removed; 6' stowed height for doorways and freight elevators
- 3,430 lb total weight for trailer transport and slab-on-grade interiors
- Honda GX390 gas engine plus a 120 V electric motor for indoor work
- Wireless controller
- Two-man basket
- Foot pedal activation switch
- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 120 V electric pump for machine use on 120 V wall power
Applications

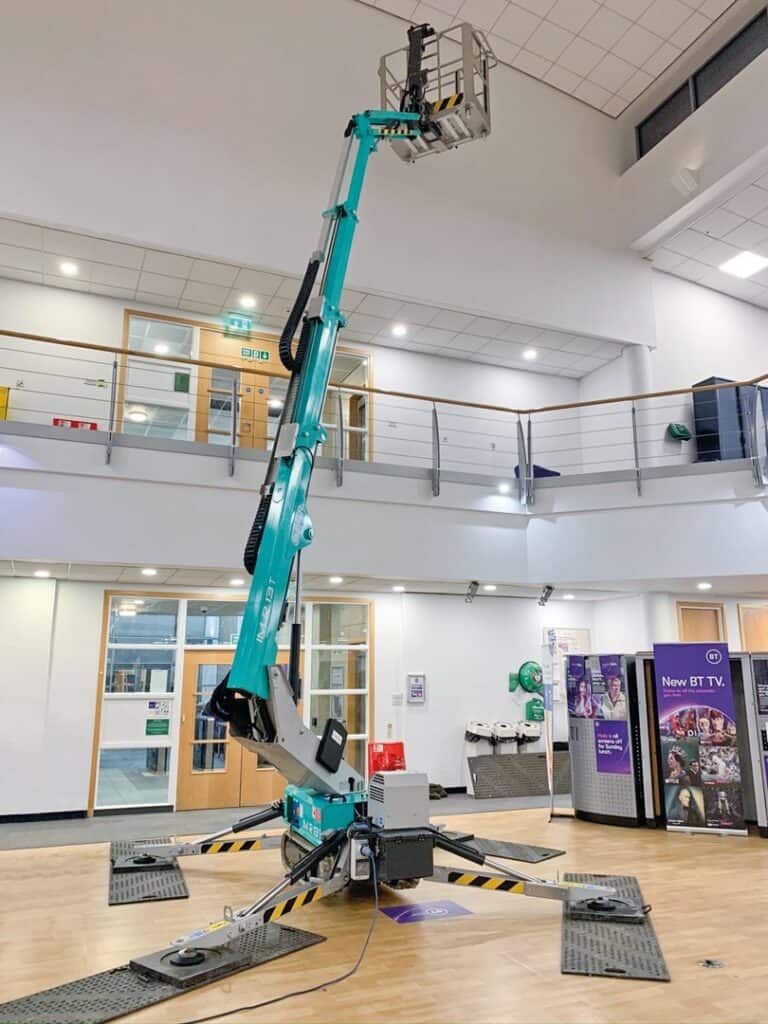

Built for interior work where a compact aerial work platform has to get in first: the IM R 42 / 13 T serves as an atrium lift in lobbies, gymnasiums, churches and retail spaces, and handles lighting, HVAC, sprinkler and signage work on finished floors. Outside, the tracked chassis takes it across lawns and gravel for low-rise facade repairs and light tree work. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Gas |
|---|---|
| Working height | 42' |
| Platform height | 36' |
| Max side outreach | 22' 4" / 198 lbs. |
| Side outreach @ 507 lbs. | 18' 1" |
| Side outreach @ 309 lbs. | 20' 8" |
| Side outreach @ 198 lbs. | 22' 4" |
| Max load capacity | 507 lbs. |
| Turret rotation | 360° (not continuous) |
| Basket dimensions | 4' 3" x 2' 6" x 3' 7" |
| Outrigger footprint | 8' 10" x 9' 2" |
| Transport length (without basket) | 12' 6" (9' 10") |
| Transport width (without basket) | 4' 3" (2' 7") |
| Stowed height | 6' |
| Total machine weight | 3,430 lbs. |
| Driving speed | 0.9 mph |
| Gradeability | 30% |
| Electric motor | 120 V 1.5 hp |
| Gas engine | Honda GX390 - 13hp |

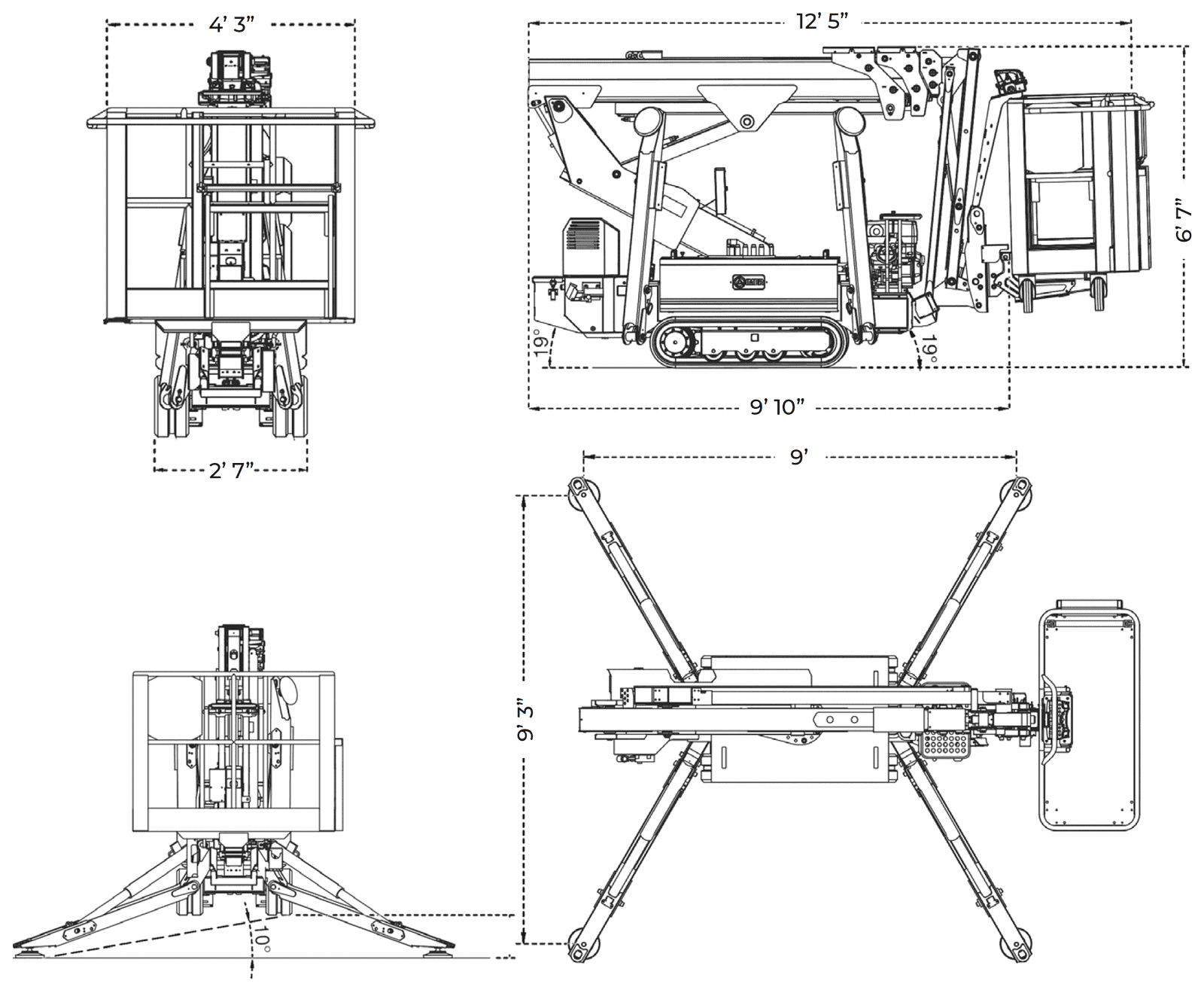

Dimensions

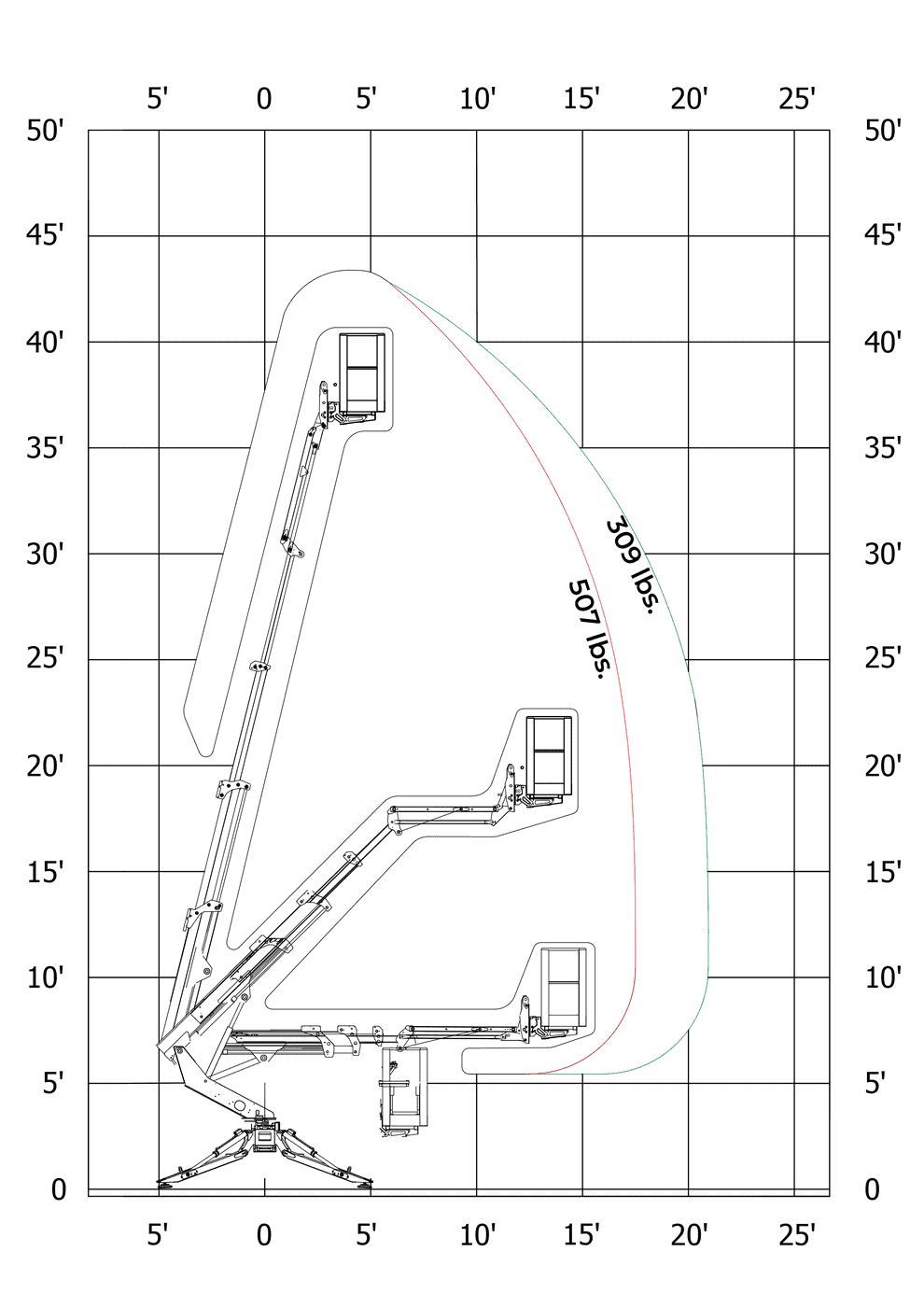

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 42 / 13 TDownloads
Frequently Asked Questions
Yes. With the basket removed the machine is 31" wide and 6' tall, so it passes a standard 36" door and most freight elevators. With the basket mounted it is 4' 3" wide.
The platform is rated for 507 lb, enough for two workers with tools. Side outreach is 18' 1" at 507 lb and 22' 4" at 198 lb.
Yes. The gas engine is paired with a 120 V, 1.5 hp electric motor that runs the machine on standard wall power, so it works on finished floors with no exhaust.
