1 / 865' working height · 507 lb platform capacity

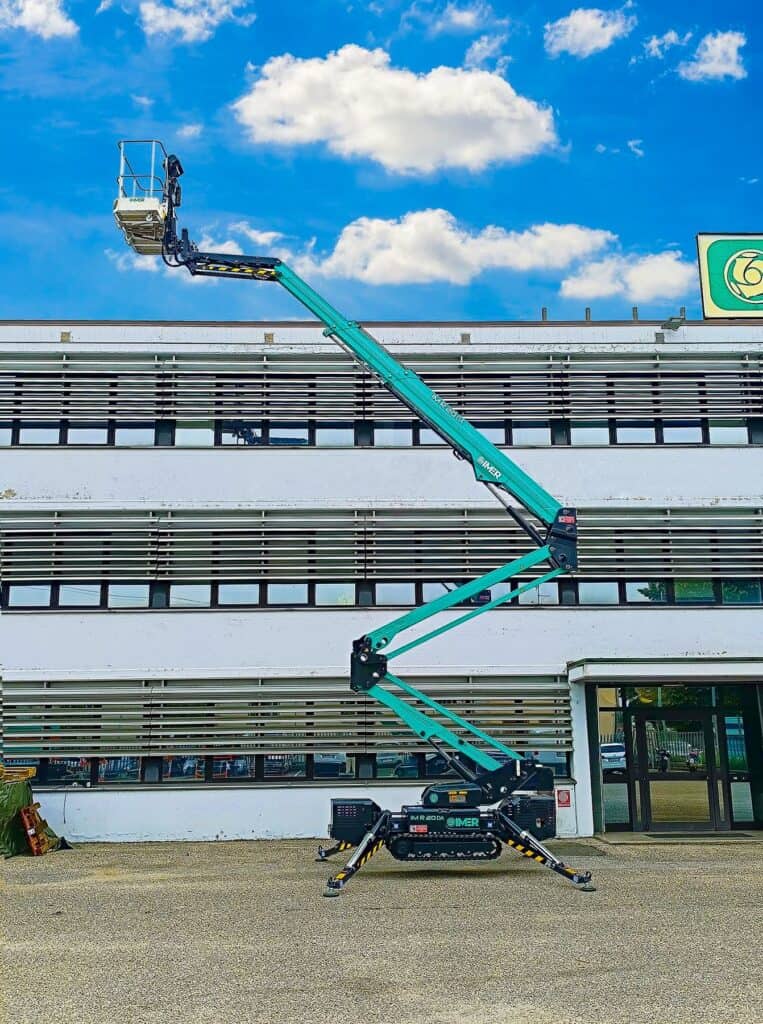

The IMER IM R 65 / 20 DA Pro provides a 507 lb platform capacity with a 65 foot working height on a chassis that fits through a 36-inch doorway. Its double articulated boom and active jib provide 32' 10" of outreach and 26' 3" of up and over, so crews get to the work face around parapets, mezzanines and rooflines without repositioning. Auto-leveling outriggers set up fast on uneven ground, and four power options cover indoor and outdoor jobsites with one machine.
- 32' 10" side outreach at the full 507 lb capacity, with no derating across the working envelope

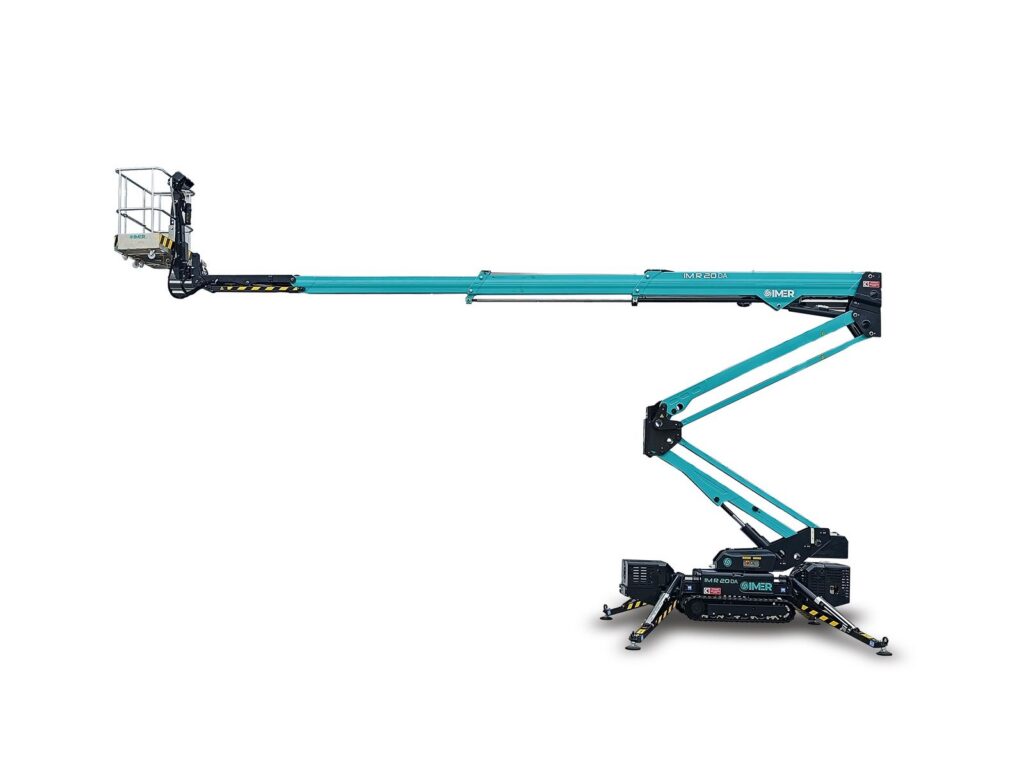

- 26' 3" up-and-over clearance from the double articulated boom and active jib

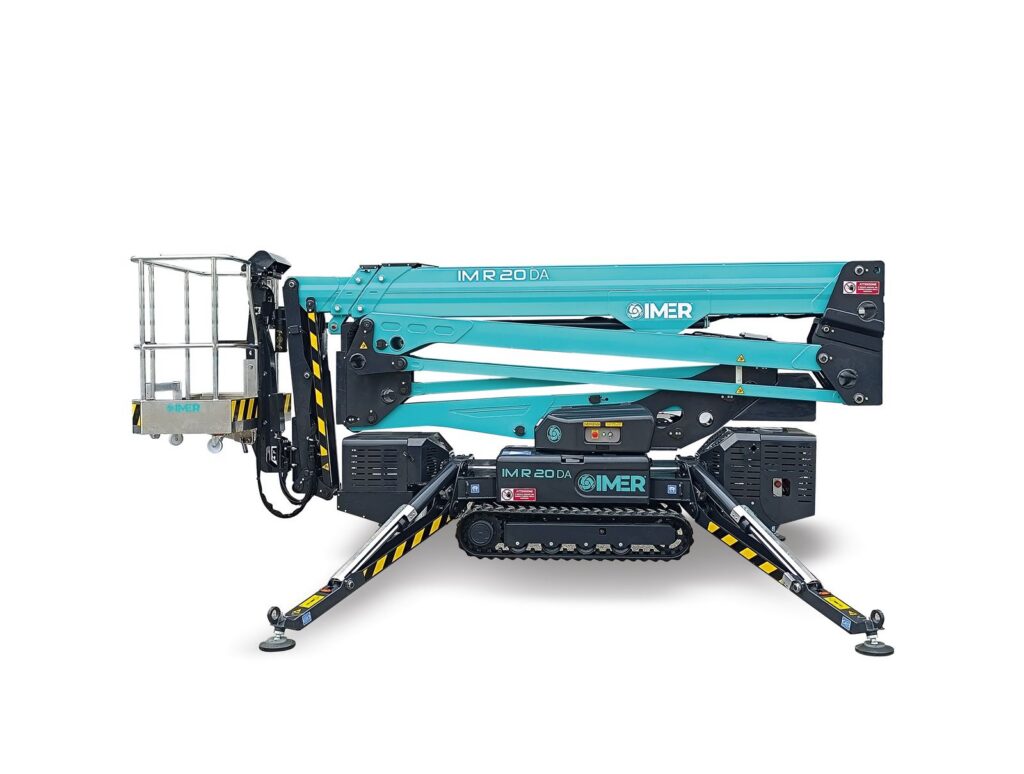

- 31" transport width on hydraulically adjustable tracks; 6' 7" stowed height

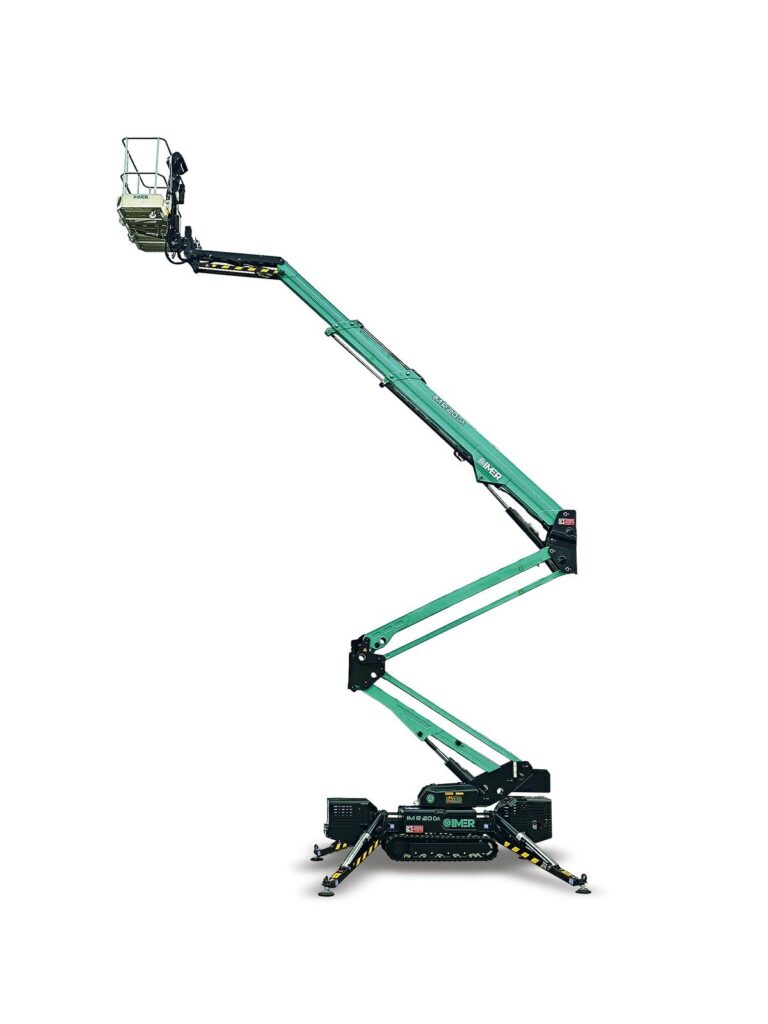

- Auto-leveling outriggers and wireless ground control for one-person setup
- Gas, diesel, lithium or hybrid power, with a 120 V electric motor for indoor work on gas and diesel units
- Enhanced wireless controller with 4.3” color screen
- Return-to-home button
- Two-man basket
- Foot pedal activation switch
- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 120 V electric pump for machine use on 120 V wall power
Applications

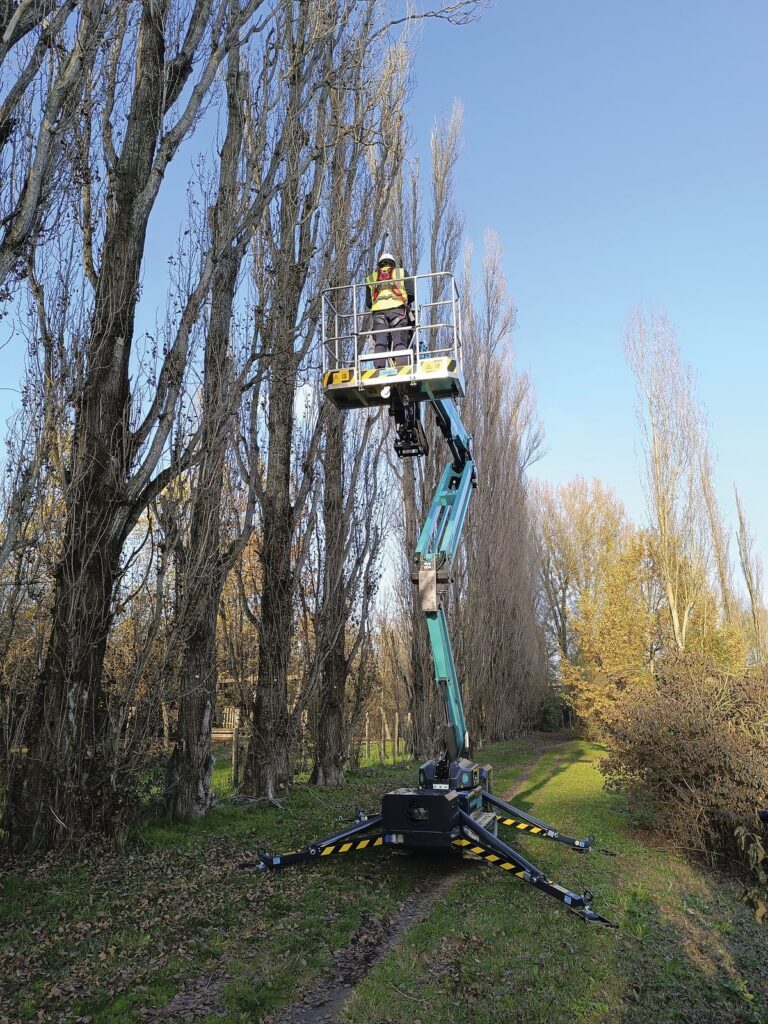

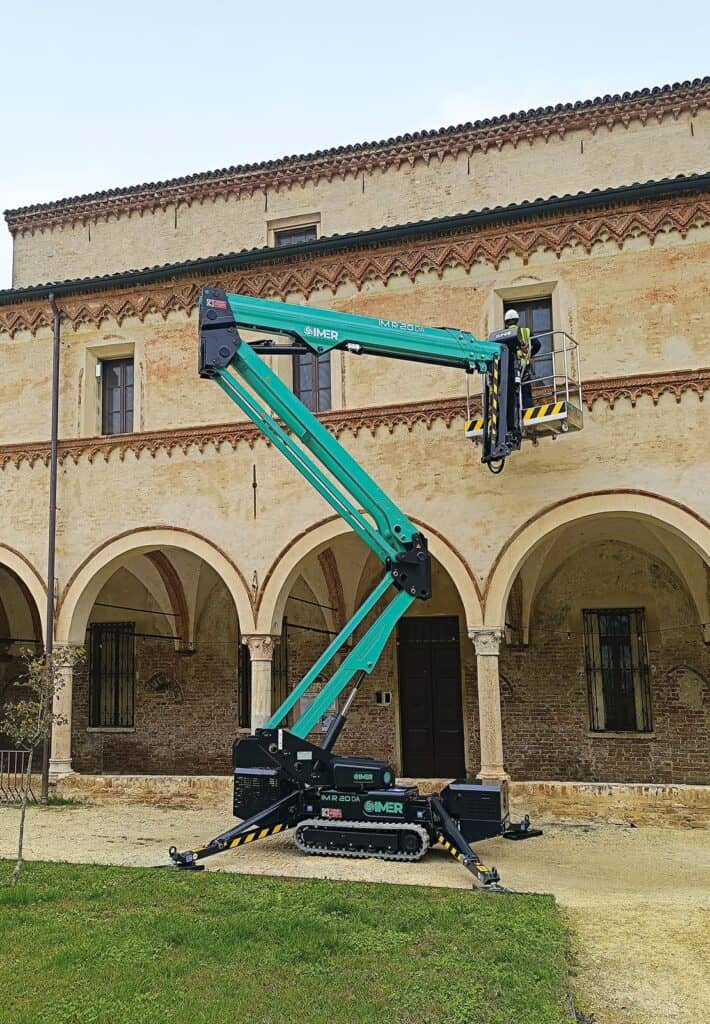

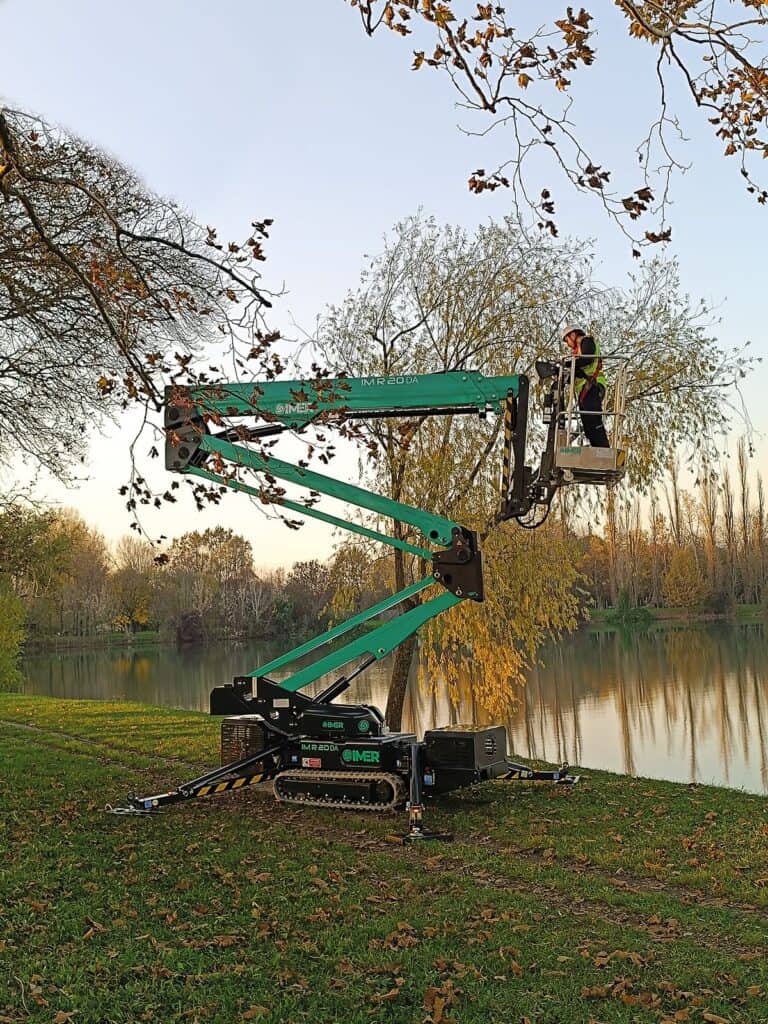

The IM R 65 / 20 DA Pro is a spider boom lift for five- and six-story facades, glazing, curtain wall, stucco and masonry repair, signage, and tree work where a bucket truck can't drive in. As an atrium lift it reaches skylights and ceiling systems in malls, airports and arenas from a 31" doorway. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Gas / Diesel | Lithium | Hybrid |
|---|---|---|---|
| Working height | 65' | ||
| Platform height | 59' | ||
| Max side outreach | 32' 10" / 507 lbs. | ||
| Up & Over | 26' 3" | ||
| Max load capacity | 507 lbs. | ||
| Turret rotation | 360° (not continuous) | ||
| Basket rotation | 124° | ||
| Basket dimensions | 4' 11" x 2' 4" x 3' 7" | ||
| Outrigger footprint - standard | 10' 5" x 10' 6" | ||
| Transport length (without basket) | 16' 8" (14' 5") | ||
| Transport width (w/ tracks extended) | 2' 7" (3' 7") | ||
| Stowed height (w/ outrigger pads) | 6' 7" (6' 8") | ||
| Total machine weight | Gas 6,393 lbs. / Diesel 6,570 lbs. | 6,504 lbs. | 6,614 lbs. |
| Driving speed | 1.2 mph | 1.1 mph | 1.1 mph |
| Gradeability | 30% | ||
| Electric motor | 120 V 1.5 hp | 48V 6 hp | 48V 6 hp |
| Gas engine | Honda GX390 - 13 hp | — | — |
| Diesel engine | Kubota Z602 - 17 hp | — | — |
| Lithium batteries | — | 48V / 110 Ah | 48V / 110 Ah |
| Lithium battery charger | — | 48V / 50 A | 48V / 50 A |
| Gas generator | — | — | Honda GX160 - 5 hp |
| Current supplied by generator | — | — | 10 A |

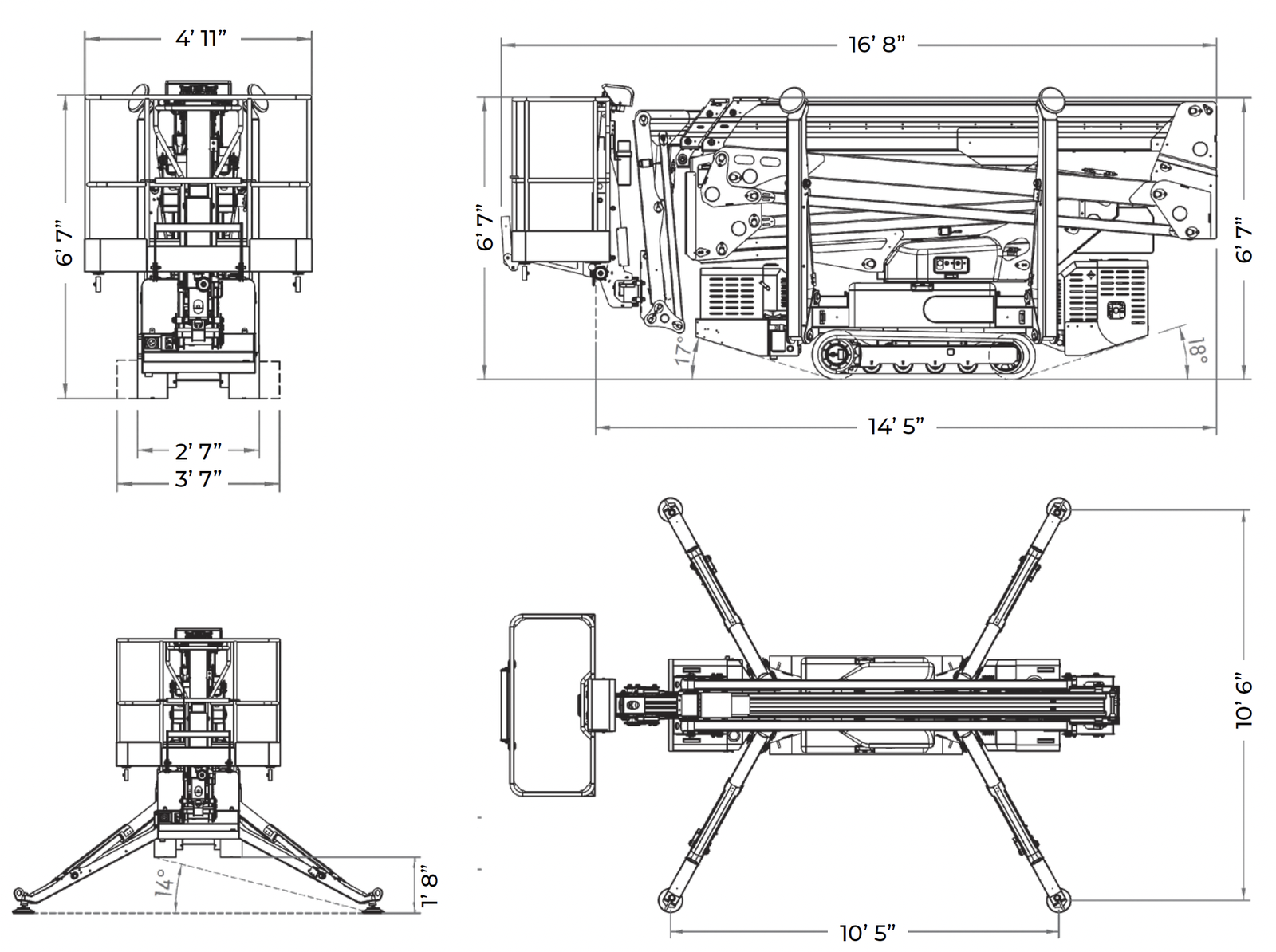

Dimensions

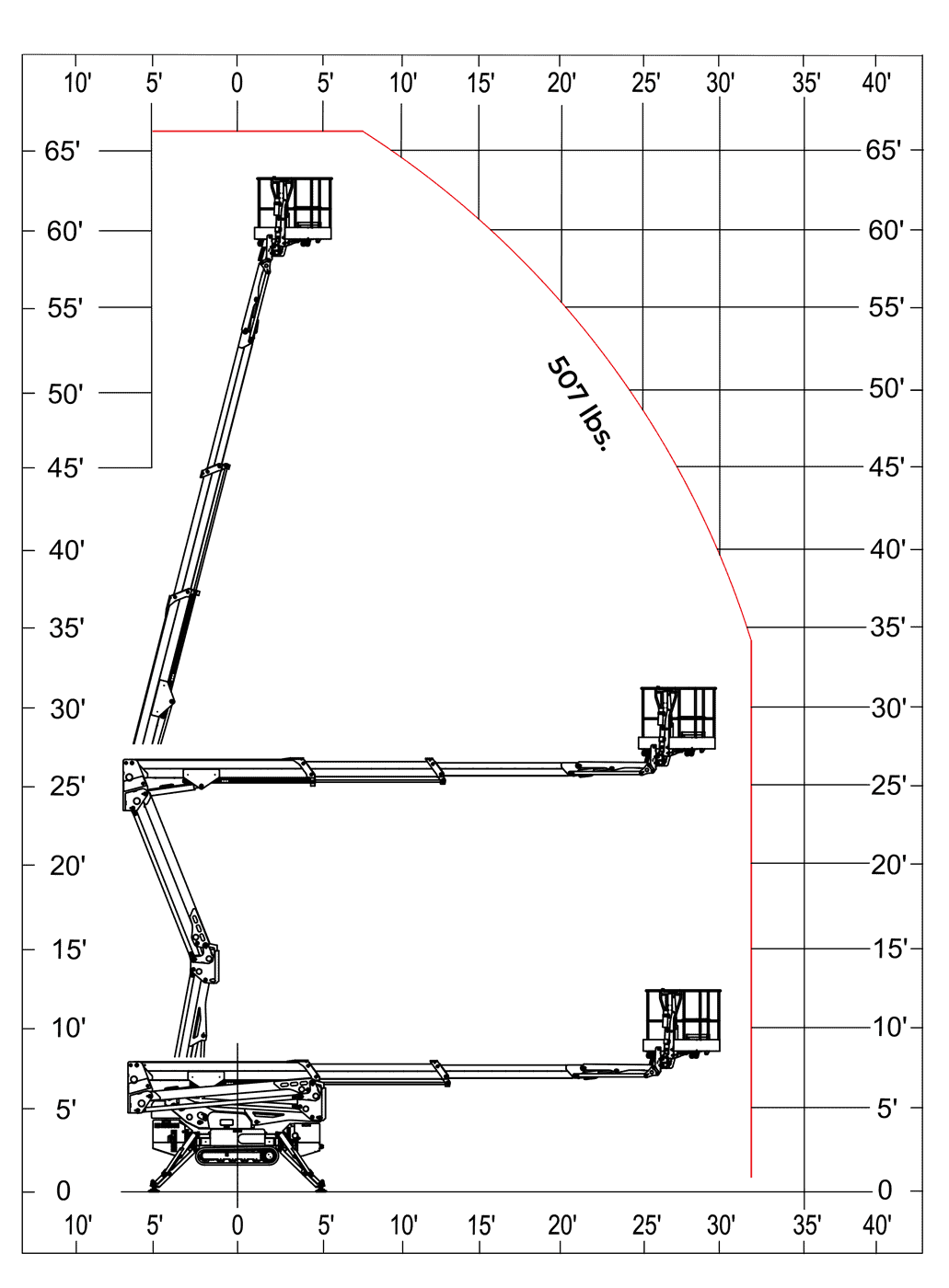

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 65 / 20 DA ProDownloads
Frequently Asked Questions
Yes. The tracks retract to 2' 7" (31") and the stowed height is 6' 7", so it passes a standard 36" door and most freight elevators.
507 lb, enough for two workers with tools. The full 32' 10" of side outreach is available at 507 lb, with 26' 3" of up-and-over clearance.
Gas (Honda GX390) or diesel (Kubota Z602), each with a 120 V electric motor for indoor use; lithium (48 V / 110 Ah); or hybrid (lithium with a Honda GX160 generator). Total weight is 6,393 to 6,614 lb depending on the version.
