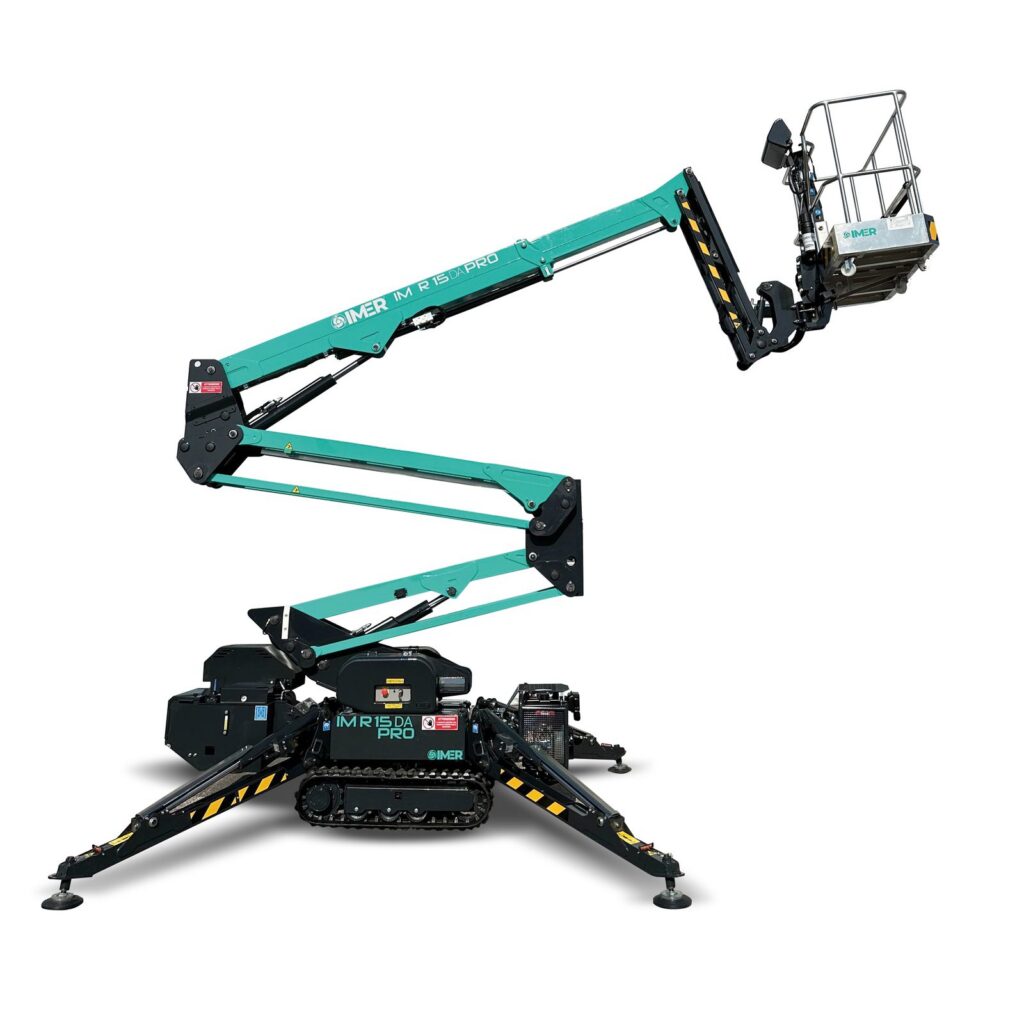

1 / 549' working height · 507 lb platform capacity
The IMER IM R 49 / 15 DA Pro packs a 49 foot working height and 507 lb platform capacity into a 4,475 lb machine with a 31" transport width. Its double articulated boom and unrestricted jib deliver 23' of side outreach at full capacity and 23' of up and over, so crews clear parapets and work around obstacles without moving the base. Auto-leveling outriggers set up fast on uneven ground, and gas, lithium or hybrid power covers indoor and outdoor jobsites with one machine.

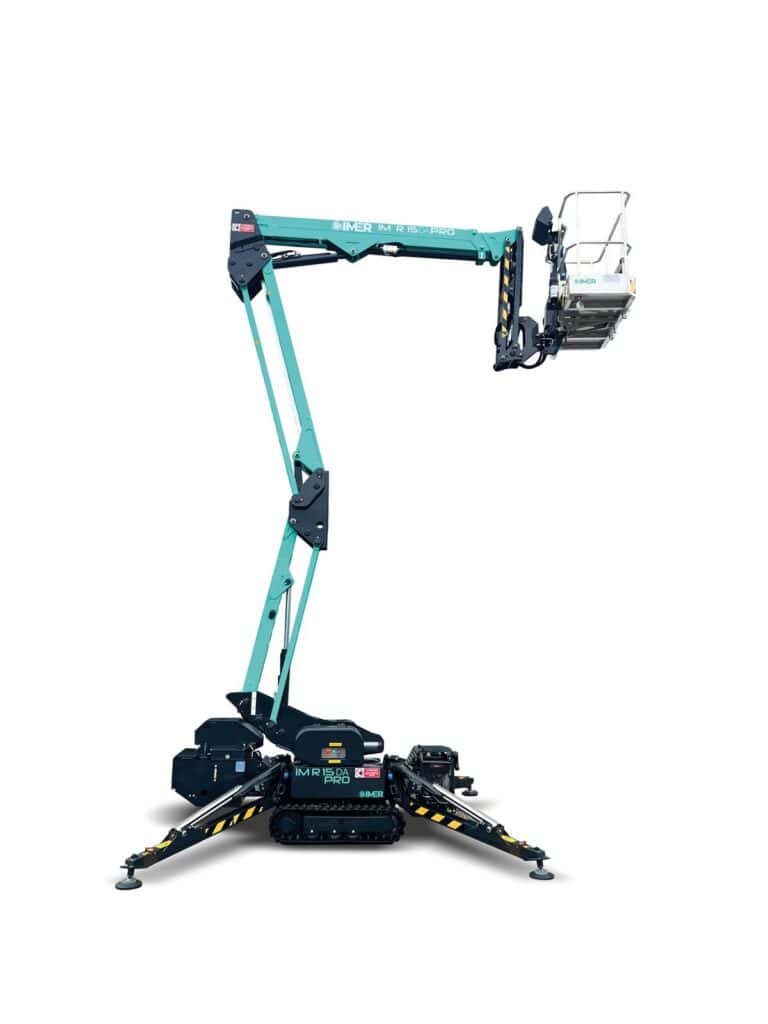

- 23' side outreach at the full 507 lb capacity, with no derating across the working envelope
- 23' up-and-over clearance from the double articulated boom and unrestricted jib

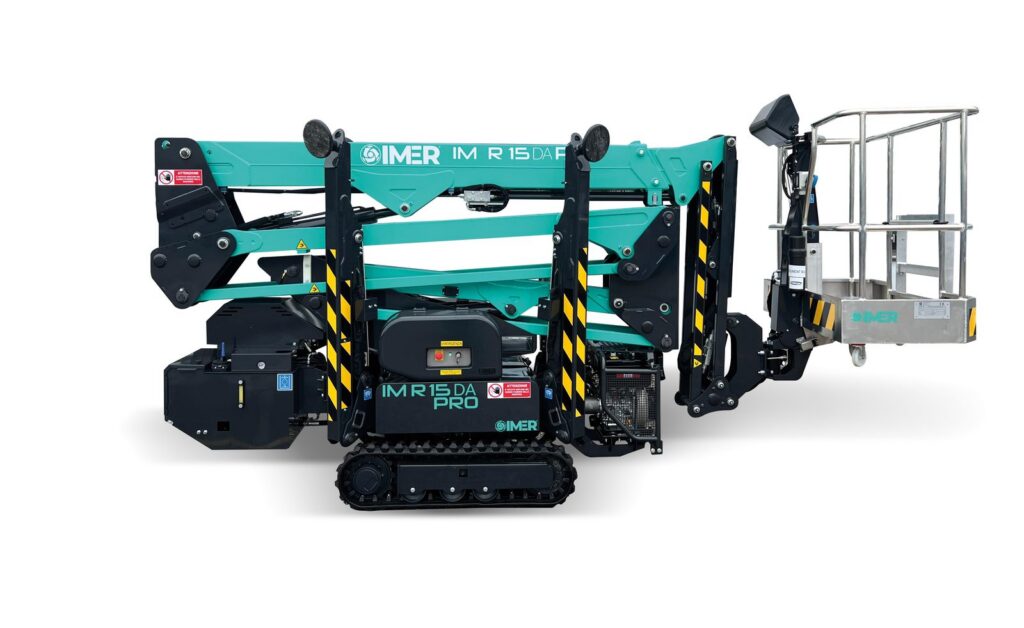

- 31" transport width on hydraulically adjustable tracks; 6' 7" stowed height
- 4,475 lb total weight for trailer transport and interior slabs
- Gas, lithium or hybrid power, with a 120 V electric motor for indoor work on the gas unit
- Enhanced wireless controller with 4.3” color screen
- Return-to-home button
- Two-man basket
- Foot pedal activation switch

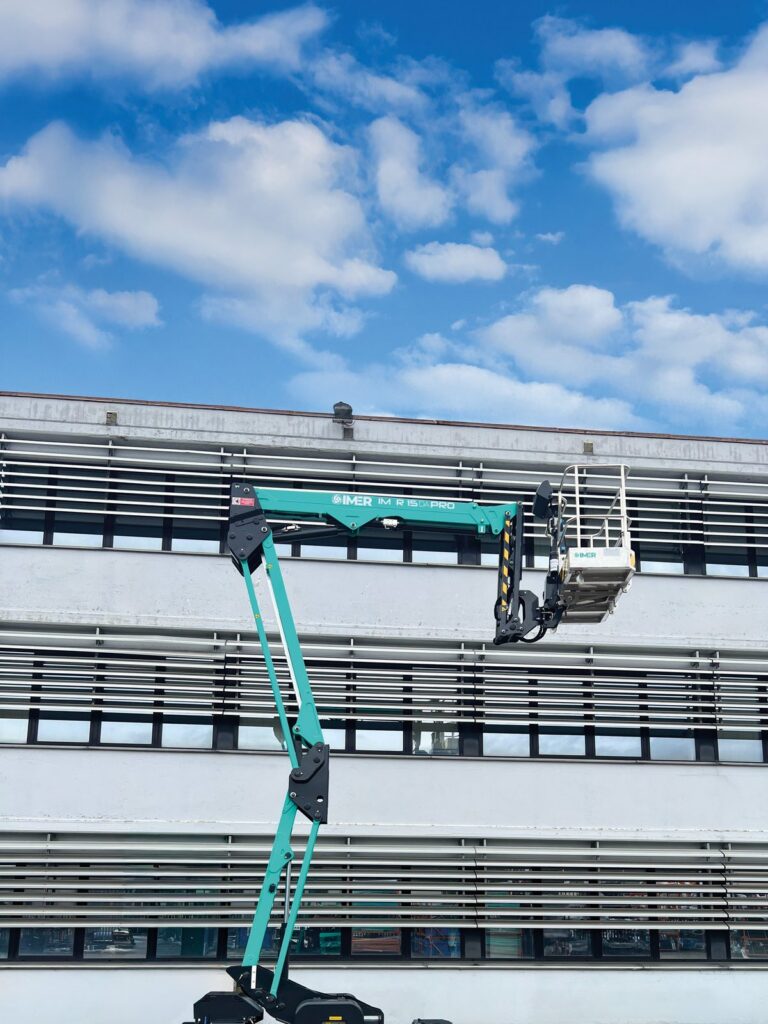

- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 120 V electric pump for machine use on 120 V wall power
Applications

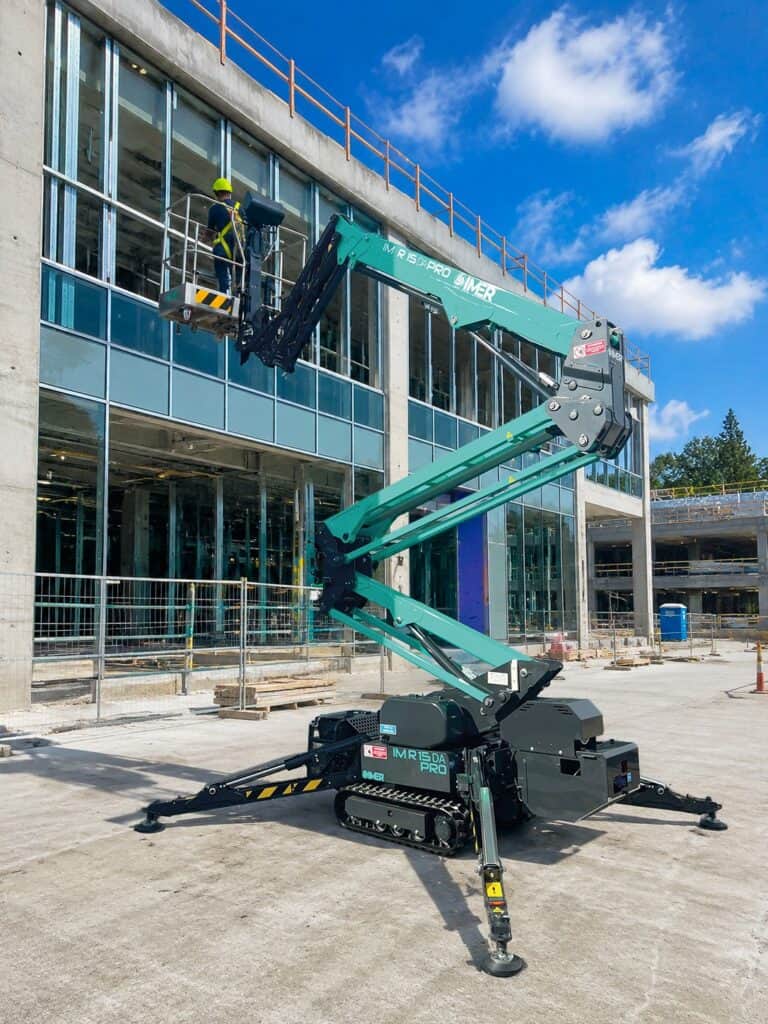

The IM R 49 / 15 DA Pro is the compact aerial work platform for jobs a scissor lift or boom lift can't reach: atrium and lobby work, glazing and curtain wall, HVAC and sprinkler installs, signage, and spider lift tree work at residential sites. The double articulated boom gets over fixtures, balconies and landscaping, and the 31" chassis rolls through a standard door or onto a freight elevator. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Gas | Lithium | Hybrid |
|---|---|---|---|
| Working height | 49' | ||
| Platform height | 43' | ||
| Max side outreach | 23' / 507 lbs. | ||
| Up & Over | 23' | ||
| Max load capacity | 507 lbs. | ||
| Turret rotation | 360° (not continuous) | ||
| Basket rotation | 124° | ||
| Basket dimensions | 4' 11" x 2' 4" x 3' 7" | ||
| Outrigger footprint - standard | 9' 7" x 10' 1" | ||
| Transport length (without basket) | 14' 5" (12' 3") | ||
| Transport width (w/ tracks extended) | 2' 7" (3' 7") | ||
| Stowed height (w/ outrigger pads) | 6' 7" (6' 9") | ||
| Total machine weight | 4,475 lbs. | 4,542 lbs. | 4,564 lbs. |
| Driving speed | 1.6 mph | 1.4 mph | 1.4 mph |
| Gradeability | 30% | ||
| Electric motor | 120 V 1.5 hp | 48V 5 hp | 48V 5 hp |
| Gas engine | Honda GX390 - 13 hp | — | — |
| Lithium batteries | — | 48V / 110 Ah | 48V / 110 Ah |
| Lithium battery charger | — | 48V / 50 A | 48V / 50 A |
| Gas generator | — | — | Honda GX160 5 hp |
| Current supplied by generator | — | — | 10A |

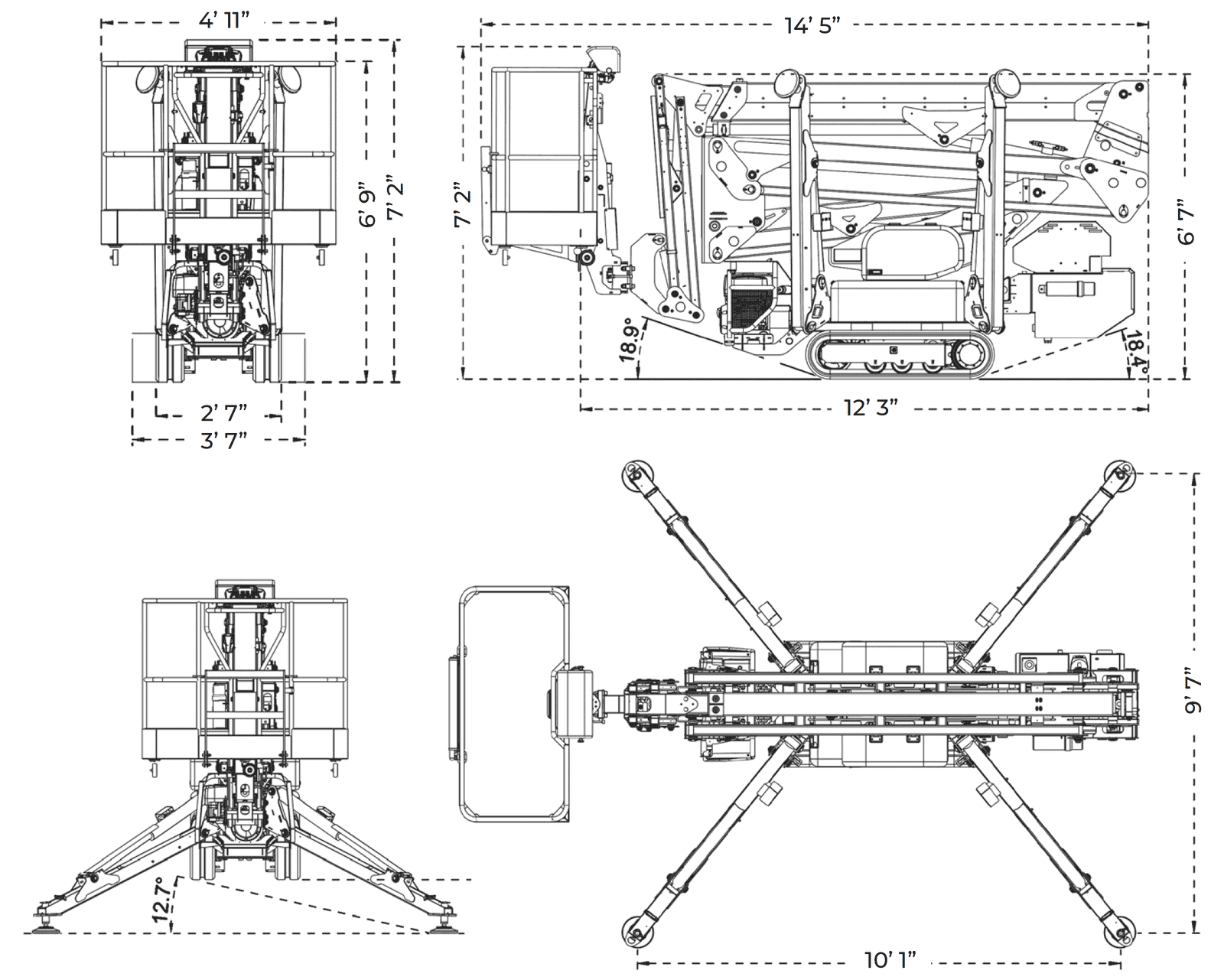

Dimensions

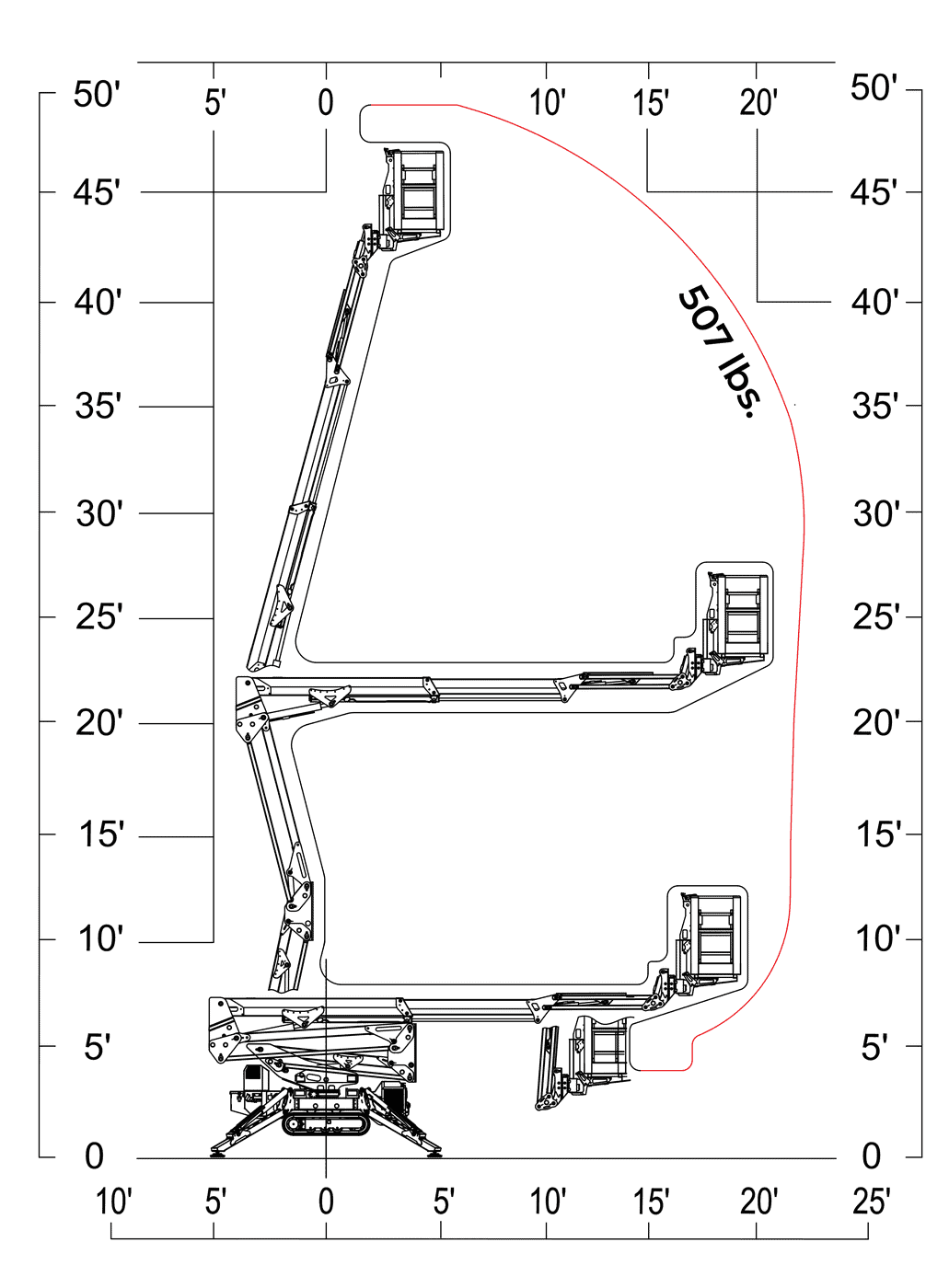

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 49 / 15 DA ProDownloads
Frequently Asked Questions
Yes. The tracks retract to 2' 7" (31") and the stowed height is 6' 7", so it passes a standard 36" door and most freight elevators without removing the basket.
507 lb, enough for two workers with tools. The full 23' of side outreach is available at 507 lb; there is no derating across the working envelope.
Gas (Honda GX390 with a 120 V electric motor for indoor use), lithium (48 V / 110 Ah battery) and hybrid (lithium with a Honda GX160 generator). Total weight is 4,475 to 4,564 lb depending on the version.

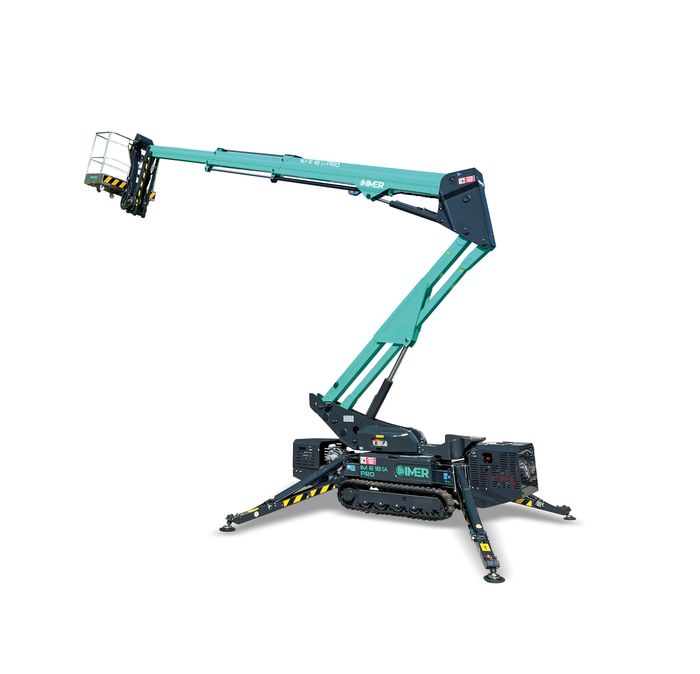

Other Tracked Spider Lifts
